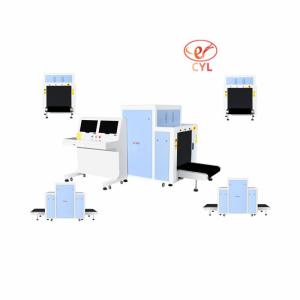

Chuangyilong Baggage Scanning Machine For Public Security Inspection
Product Description
Dual energy security baggage scanner is a typical product of Chuangyilong company.It uses X-ray to penetrate and check baggage or cargo without open.
Specification
| Category | Item | Spec. |
| Basic Information | Working Voltage | 220V |
| Tunnel Size | 800x650 mm |
| Conveyor Max Load | 180KG |
| Max Power Consumption | 0.46 KVA |
| Noise Level | < 60 db |
| Product Size | 200(L) x117(W) x160(H) cm |
| X-Ray Generator | Tube Current | 0.4~1.2mA |
| Tube Voltage | 100-160KV |
| Cooling Style | 100% oil cooling |
| Generate Direct | from TOP |
| X-Ray Sensor | Dual energy |
| Generate Angle | 80 degree |
| Image System | Monitor | 19 inch LCD |
| Color | 32 bit true color |
| Image Enhancement | 16/64 times |
| Image Storage | 300,000 |
| Operation Desk | Optional |
| Operation System | Windows |
Package Information
Product size: 200(L) x117(W) x160(H) cm
Worktop available if need
Transport Package: Wooden
Place of Origin: Shenzhen, China
Image System
19 inch display screen with high resolution
Color image display 32 bit true color
Image enhancement to make detail more clearly
High/Low penetration to improve the area contrast
Real-time curve,Image reback and recover funtion
Image storage:save any images and processing continuous
Example Case
Changchun Museum
Guangzhou Art Museum
Express company and hotel
Shenzhen New Yaoshi Concert
The 2nd Shenzhen International Marathon
Our products are used in overseas market such as Africa, Southeast Asia, Mideast, Europe and South America.
FAQ:
1. Q: Can I get some samples?
A: Yes,sample order is available
2. Q: What's the delivery time?
A: 3-7 work days
3. Q: How long is the warranty period ?
A: We offer one year warranty
4. Q: How about the freight?
A: The shipping cost depends on different weight, we suggest airway and seaway based on different qty. We will choose the cheapest and best solution according your condition.
5. Q: How does your factory do regarding the quality control?
A: Quality is first, every product will be fully assembled and carefully tested before delivery.
Application Example
X-Ray luggage scanner , airport baggage scanner machine ,public security check
